High-speed centrifugation is widely applied to fluid-mechanical devices to increase efficiency and save both time and equipment cost. During operation, a fluid-mechanical device rotates at high speed to gain a faster flow rate, and the frequency increases as the motor rotation speed increases.

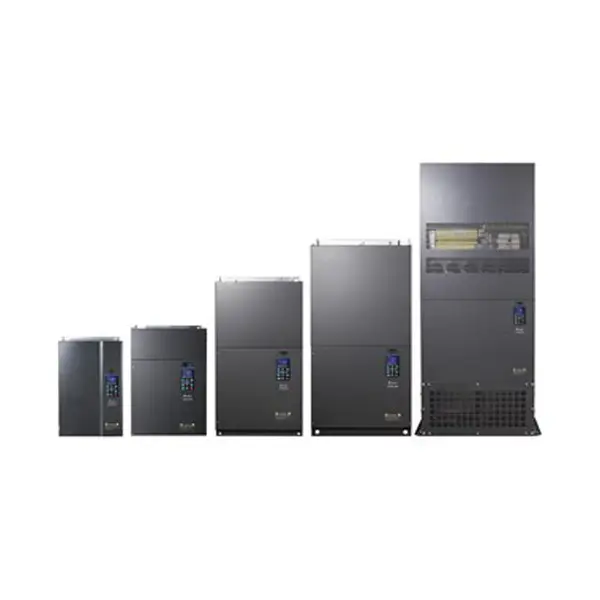

Product Introduction
Features & Benefits
- High-speed operation: Enhanced performance and control with max. operating frequency up to 1,500 Hz
- Direct drive mechanism: Reduced system size, higher efficiency and lower cost
- Compact design: No need to adopt a drive of higher power range when matching with a high-capacity motor. Reduces installation space
- Sensorless motor control technology: Built-in motor ID parameters for sensorless control with steadier output speed and optimized dynamic response. With FOC sensorless control, the speed control precision reaches 1:100
- New IGBT technology: Maintains high motor drive efficiency of up to 98% while running at a high carrier frequency. Substantially reduces the derating limit of the output current
- Built-in DC reactor: Suppresses high harmonics and compliant with EN61000-3-12
Applications
- HVAC Systems – Chiller Units
- Sewage Treatment Plants – Centrifugal Turbo Blowers
- Power Plants – Micro Gas Turbine Generators
Specifications
